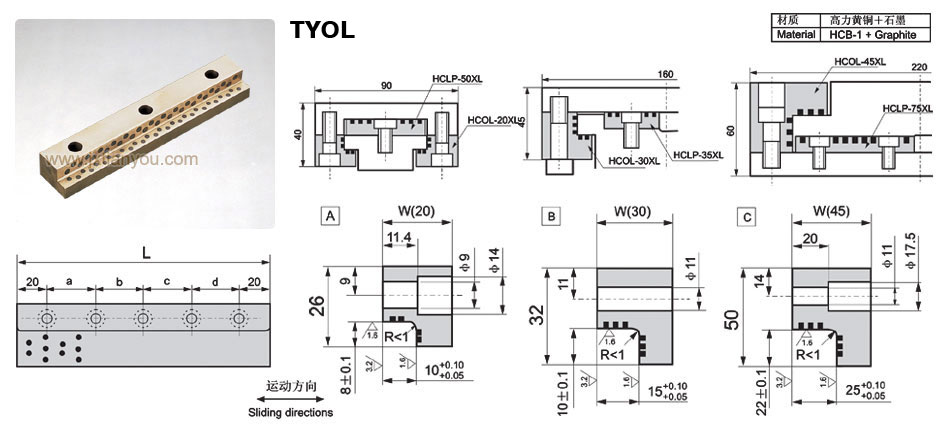

| Unit(mm) | |||||||||
| Standard No. | W | L | bolt location | BOLT | Sketch | ||||
|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | Type | Q'ty | ||||
| TYOL-20X100 | 20 | 100 | 60 | - | - | - | M8 | 2 | A |
| TYOL-20X150 | 150 | 55 | 55 | - | - | 3 | |||
| TYOL-20X200 | 200 | 55 | 50 | 55 | - | 4 | |||
| TYOL-30X100 | 30 | 100 | 60 | - | - | - | M10 | 2 | B |
| TYOL-30X150 | 150 | 55 | 55 | - | - | 3 | |||
| TYOL-30X200 | 200 | 55 | 50 | 55 | - | 4 | |||
| TYOL-30X250 | 250 | 70 | 70 | 70 | - | 4 | |||
| TYOL-45X200 | 40 | 200 | 55 | 50 | 55 | - | 4 | C | |
| TYOL-40X250 | 250 | 70 | 70 | 70 | - | 4 | |||
| TYOL-45X300 | 300 | 65 | 65 | 65 | 65 | 5 | |||
| TYOL-40X350 | 350 | 80 | 75 | 75 | 80 | 5 | |||
