Commonly used guiding device for automobile molds

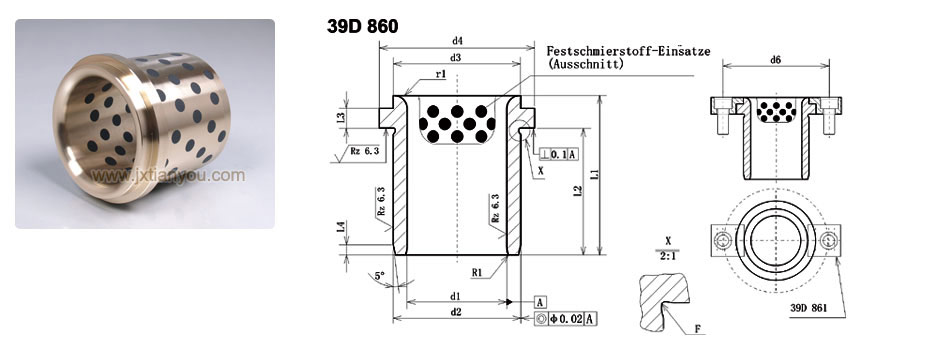

39D 860 Size Table
unit(mm)
ausführung d1
h7		 d2
h6		 d3
-0.25		 d4
-0.8		 d6
±0.3		 l1 l2 l3
+0.1		 l4 r1 f
11 25 32 32 40 58 40 30 6.3 3 3 0.6×0.3
12 32 40 40 50 66 50 40 6.3 4 3
13 40 50 50 63 79 63 50 6.3 5 3
14 50 63 63 71 89 71 56 6.3 6.3 5
15 63 80 80 90 123 80 63 10 8 6
16 80 100 100 112 143 100 80 10 10 8
17 100 125 125 140 168 125 106 10 12.5 10 1×0.4
18 125 160 160 180 203 160 132 10 16 12
20 160 200 200 220 243 200 170 10 16 18
