Commonly used guiding device for automobile molds

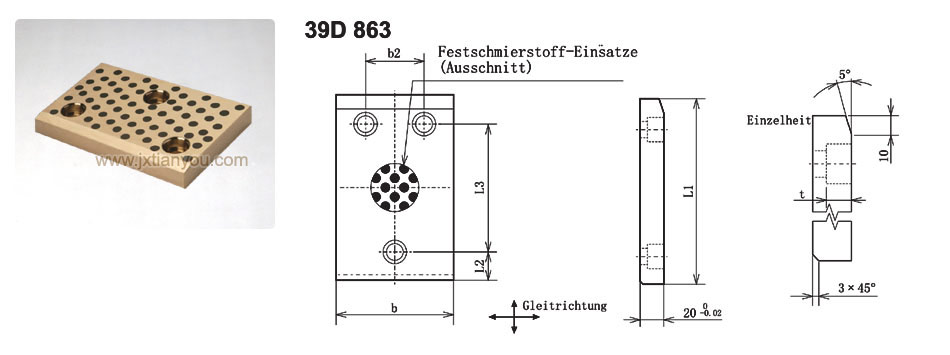

39D 863 Size Table
Unit(mm)
AusfÜhrung b
-0.2		 L1
-0.2		 b2
±0.2		 L2
±0.2		 L3
±0.2		 L4
±0.2		 Zyl.Schrb.
DIN EN ISO4762(DIN912) Stk.
12 50 80 - 25 30 - M8×25 2
13 100 - 50 - M12×25
14 125 - 75 -
15 160 - 110 -
16 200 - 150 -
111 250 - 60 80 4
112 300 - 80 90
113 350 - 100 100
114 400 - 120 110
115 450 - 140 120
116 500 - 150 150
21 80
 50 30 25 - - M8×25 2
22 80 - 30 - M12×25
23 100 - 50 -
24 125 - 75 -
25 160 - 110 -
26 200 - 150 -
121 250 - 60 80 4
122 300 - 80 90
123 350 - 100 100
124 400 - 120 110
125 450 - 140 120
126 500 - 150 150
31 100 50 50 25 - - M12×25 2
32 80 40 - -
33 100 - 25 50 -
34 125 - 75 -
35 160 - 110 -
36 200 - 150 -
131 450 - 140 120 4
132 500 - 150 150
41 125 50 75 25 - - M12×25 2
42 80 40 - -
43 100 25 50 - 3
44 125 75 -
45 160 110 -
46 200 150 -
141 450 - 140 120 4
142 500 - 150 150
51 160 50 110 25 - - M12×25 2
52 80 40 - -
53 100 25 50 - 3
54 125 75 -
55 160 110 -
56 200 150 -
