首 页 > 天佑产品分类 > 工程机械自润滑轴承 > TYB800F 双金属翻边轴承

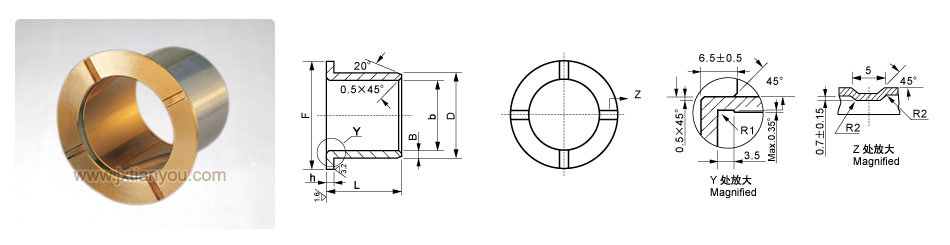

HCB800F 双金属翻边轴承
TYB800F 双金属翻边轴承 尺寸表
unit(单位)：mm
型号 f-0.5 d+0.28+0.20 d+0.20+0.15 l0-0.04 h b
4040 60 46 40 39.5 3.5 3.0
4035 62 47 40 35 3.5 3.5
4055 68 55 45 55 3.5 5.0
5040a 72 57 50 40 3.5 3.5
5040b 70 57 50 40 3.5 3.5
5050 70 57 50 50 3.5 3.5
5460 92 60.6 54 60 3.5 3.5
6053 83 67 60 53 3.5 3.5
6060 87 67 60 60 3.5 3.5
6065 77 67 60 65 3.5 3.5
6060a 88 68 60 60 4.0 4.0
6060b 87 68 60 60 4.0 4.0
6465 102.6 70.4 63.5 65 3.5 3.5
6473 103 70.8 63.8 73 3.5 3.5
6553 85 72 65 53 3.5 3.5
6564 87 72 65 64 3.5 3.5
6575 108 72 65 75 3.5 3.5
7060 93 77 70 60 3.5 3.5
7090 108 80 70 90 5.0 5.0
7560 100 82 75 60 3.5 3.5
8060 105 87 80 68 3.5 3.5
8580 127 92 85 80 3.5 3.5
85103 128 92.6 85 103.5 3.5 3.8
89126 138 97.5 89.2 126.5 4.2 4.2
95127 144 105 95 127 5.0 5.0
