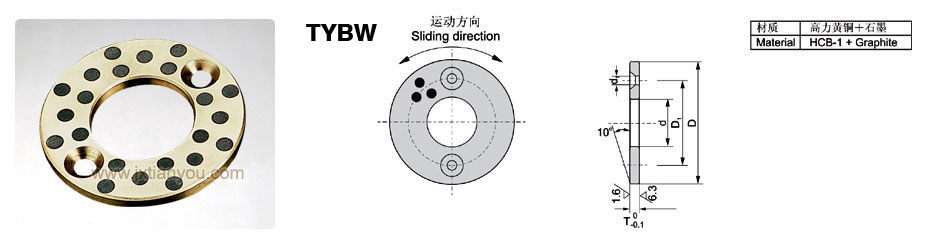

首 页 > 天佑产品分类 > 镶嵌式固体润滑轴承 > TYBW

TYBW 尺寸表
Unit(单位)：mm
Stanard No. d D T 0
-0.1 		Bolt
D1 Q'ty size d1
TYBW-10 10.2 30 3 --- --- --- ---
TYBW-12 12.2 40 28 2 M3 3.5
TYBW-13 13.2
TYBW-14 14.2
TYBW-15 15.2 50 35
TYBW-16 16.2
TYBW-16N --- --- --- ---
TYBW-18 18.2 35 2 M3 3.5
TYBW-20 20.2 5 M5 6
TYBW-20N --- --- --- ---
TYBW-25 25.2 55 40 2 M5 6
TYBW-25N --- --- --- ---
TYBW-30 30.2 60 45 2 M5 6
TYBW-35 35.2 70 50
TYBW-40 40.2 80 7 60 M6 7
TYBW-45 45.2 90 67.5
TYBW-50 50.2 100 8 75 4
TYBW-55 55.2 110 85
TYBW-60 60.2 120 90 M8 9
TYBW-65 65.2 125 95
TYBW-70 70.2 130 10 100
TYBW-75 75.2 140 110
TYBW-80 80.2 150 120
TYBW-90 90.2 170 140 M10 11
TYBW-100 100.5 190 160
TYBW-120 120.5 200 175
